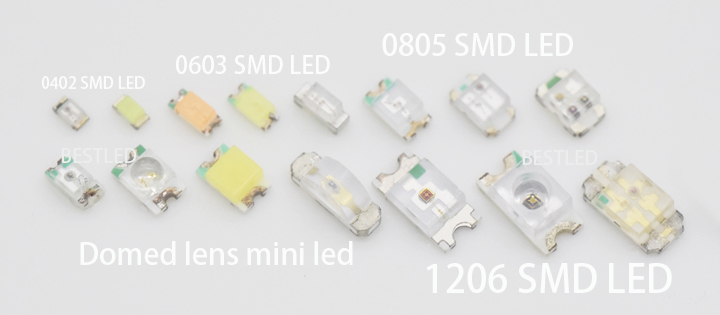

When we talk about the Micro LED, especially SMD LED. We have to line up the 0402, 0603, 0805, and 1206 SMD LEDs. These are the most popular Mini SMD LED in the LED market. The most obvious difference is their size. They literally get bigger and bigger, from the microscopic 1.0 by 0.5 millimetre 0402 up to the chunky 3.2 by 1.6 millimetre 1206. But that steady growth in footprint is not just about occupying more board space; it fundamentally alters what each package can do, how it is assembled, and where it is used.
Starting with the 0402 SMD LED, Which also name as 1005 SMD LED, this is the ultimate space‑saver, measuring just one millimetre long and half a millimetre wide, with a height of only 0.35 to 0.4 millimetres. Its internal chip is tiny, so luminous intensity is modest – typically 10 to 40 millicandela for red and yellow, and up to 200 or 250 millicandela for high‑brightness green or blue, though special ultra‑bright grades can push higher. The forward voltage sits at 1.9 to 2.3 volts for AlInGaP colours and 2.8 to 3.4 volts for InGaN colours, with a standard test current of 20 milliamps. The 0402 is almost impossible to hand‑solder; it demands precision pick‑and‑place machines, tight reflow control, and careful stencil design to avoid tombstoning. Its heat dissipation is poor, so continuous operation should stay at or below 20 milliamps. Consequently, the 0402 is confined to ultra‑compact devices like wireless earbuds, smartwatches, hearing aids, and high‑density mobile phone boards – places where every square millimetre is fought over and assembly is fully automated.
Moving up to the 0603, which measures 1.6 by 0.8 millimetres so some people also name it as 1608 SMD LED, you get a noticeable jump in both practical brightness and handling convenience. The larger chip allows standard red and yellow types to reach 50 to 150 millicandela, while greens and blues commonly hit 100 to 300 millicandela, with some high‑efficiency versions exceeding 500 millicandela. The forward voltage remains similar to the 0402 for each colour, and the test current is still 20 milliamps, but the increased mass gives slightly better thermal tolerance, allowing brief peaks up to 25 milliamps. The 0603 is the most popular all‑rounder because it strikes a balance – it is still small enough for compact consumer electronics like remote controls, kitchen appliances, and dashboard indicators, yet large enough to be hand‑soldered with a fine iron and a steady hand. It works well in both automated volume production and small‑batch prototyping, offering a sweet spot where miniaturisation meets manufacturability.
Same as above, 0805 SMD LED also name as 2012 SMD LED becuase of it's 2.0 by 1.2 millimetres size, is where the package becomes genuinely user‑friendly. Its larger pads and wider spacing make it the go‑to choice for hobbyists, educators, and repair technicians because it can be soldered comfortably with a standard iron without a microscope. The internal chip grows again, pushing standard brightness to 100 to 300 millicandela for red and yellow, and 200 to 600 millicandela for green and blue, with ultra‑bright greens often exceeding 1000 millicandela. The thermal performance improves further, allowing continuous drive currents of 25 to 30 milliamps, and the larger cavity often produces a more uniform light distribution compared to the point‑source effect of smaller packages. This makes the 0805 ideal for backlighting keypads, illuminating push‑buttons, and serving as general‑purpose indicators in appliances, medical devices, instrumentation panels, and even automotive interiors. Its assembly yield is high, with fewer tombstoning issues, and it is significantly cheaper to produce and place than the 0402, making it a favourite for cost‑sensitive mass production.
Finally, the 1206 SMD LED, measuring 3.2 by 1.6 millimetres, is the largest of the four. In this case, we also name it as 3216 SMD LED. Its generous footprint accommodates a much bigger LED die and often features an internal reflective cup that boosts luminous intensity well beyond the others – standard red and yellow types deliver 150 to 400 millicandela, while high‑brightness green and blue versions regularly exceed 1000 millicandela, and some white or green variants can reach 2000 millicandela or more. The forward voltage remains colour‑dependent, but the 1206 can handle higher continuous currents, typically 30 milliamps and sometimes up to 50 milliamps in pulsed operation, thanks to its superior heat sinking capability. This package is the easiest to hand‑solder, with large, forgiving pads that are almost impossible to bridge, and it reworks beautifully with a hot‑air gun. Its robust thermal performance and high brightness make it the preferred choice for backlighting LCD displays, automotive exterior lamps, industrial machinery status lights, power supply modules, and any application where the LED must be clearly visible in bright ambient light or operated for long periods. The trade‑off, of course, is that it occupies significantly more board area – about six times the footprint of an 0402 – so it is not suitable for densely packed portable devices.
As you move from 0402 to 1206, the progression is not just about size but about a fundamental shift in design priorities. The 0402 sacrifices brightness, thermal capacity, and assembly ease for extreme miniaturisation. The 0603 offers a compromise that works for most consumer products. The 0805 prioritises ease of use and versatility, while the 1206 delivers raw optical power and ruggedness. All four share the same basic technology – they are surface‑mount, reflow‑solderable, and available in a full spectrum of colours – but they serve entirely different tiers of the electronics market. Choosing the right package means weighing your available board space against your brightness requirements, production volume, assembly equipment, and budget. In short, they are not interchangeable upgrades; they are distinct tools for distinct jobs, and their increasing size tells you exactly what trade‑offs you are making with each step up the ladder.
