When people choose the LED for their project, the most important thing is the power of SMD LED. Then what's the different from 0.2W to 3W LED at the same emitting color and wavelength?
At first glance, two green LEDs with the same wavelength (say, 520‑530nm) might look identical. But when one is rated at 0.2W and the other at 3W, they are very different components, it's designed for entirely different applications.
The most key point is the brightness:
The 3W LED is not just a little brightet. it is 10 to 15 times brighter than the 0.2W version.A 0.2W green LED might produce 5‑10 lumens – enough for a status light or a small indicator.A 3W green LED produces 80‑120 lumens – bright enough for outdoor signage, floodlights, or high‑visibility signals. If you need visibility from a long distance and in daylight, 0.2w might cannot take that job. Try with 3W High power LED.
And also the Cost:
A 0.2W green LED costs pennies.
A 3W green LED costs significantly more, not just the LED itself, but also the driver, the PCB, and the thermal management components.
And then the Current and Voltage: The Driver Changes
A 0.2W LED typically runs at 60mA and ~3.0V. You can drive it with a simple resistor and a 3.3V or 5V supply.
A 3W LED requires 700‑750mA at ~3.6V. That is a constant‑current driver, not just a resistor. The driver must handle higher current and regulate it tightly to avoid thermal runaway.
Heat – The Hidden Challenge
This is where the biggest difference lies.
0.2W generates very little heat (~0.2W of thermal energy). The package itself can dissipate it without any special design.
3W generates around 2.5‑2.8W of heat. That is a lot of energy concentrated in a small area.
And Package and Footprint

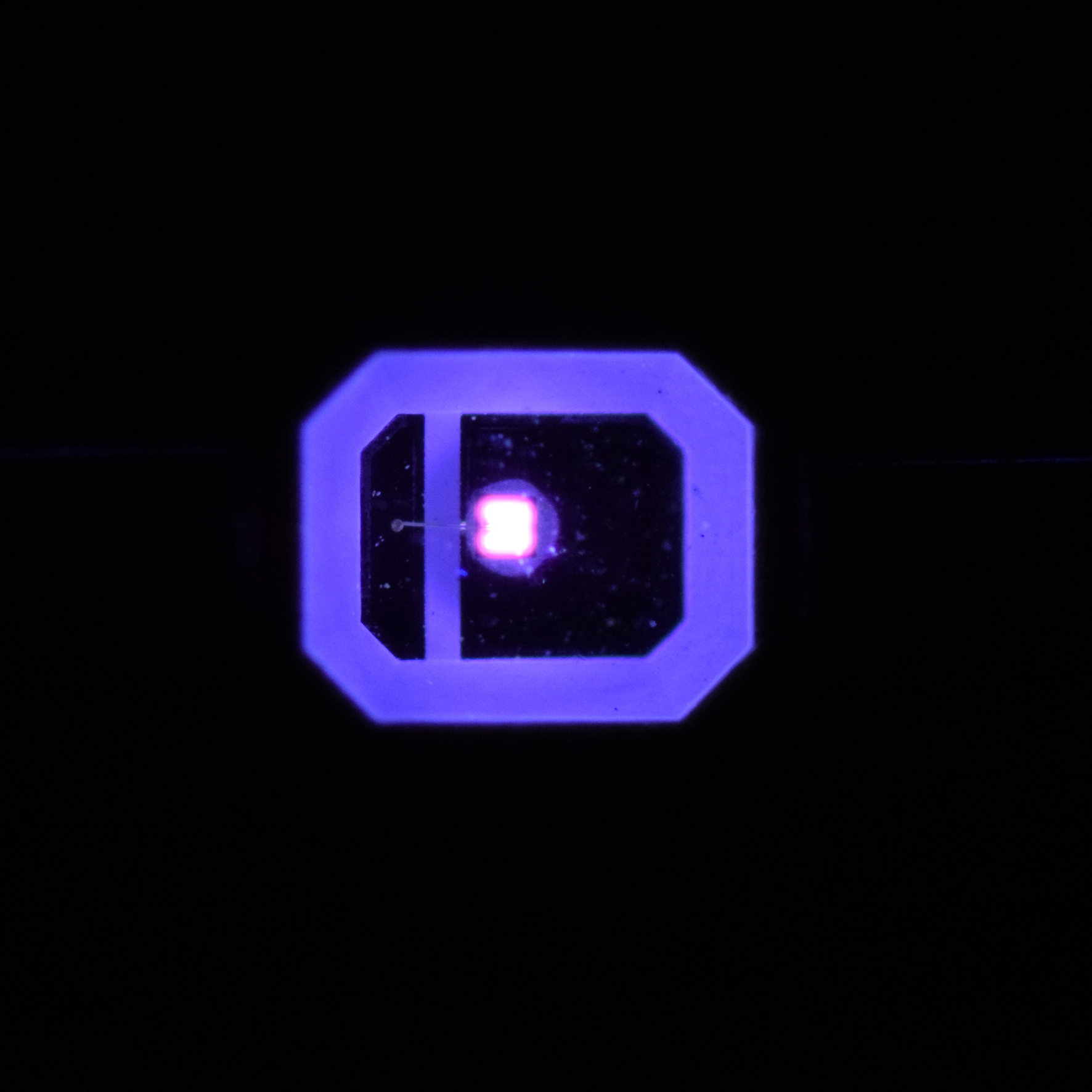

0.2W fits in compact SMD packages like 2835 SMD LED (2.8×3.5mm), 3528 SMD LED, 5730 SMD LED, 2016 SMD LED or 3014 SMD LED small, low profile.
3W usually comes in larger packages like 3535 (3.5×3.5mm) or 5050, with a large thermal pad underneath.
You cannot simply swap a 0.2W LED for a 3W LED on the same PCB. The footprint is different, and the thermal pad needs a proper copper connection.
